THÔNG SỐ KỸ THUẬT
GENERAL DATA | |

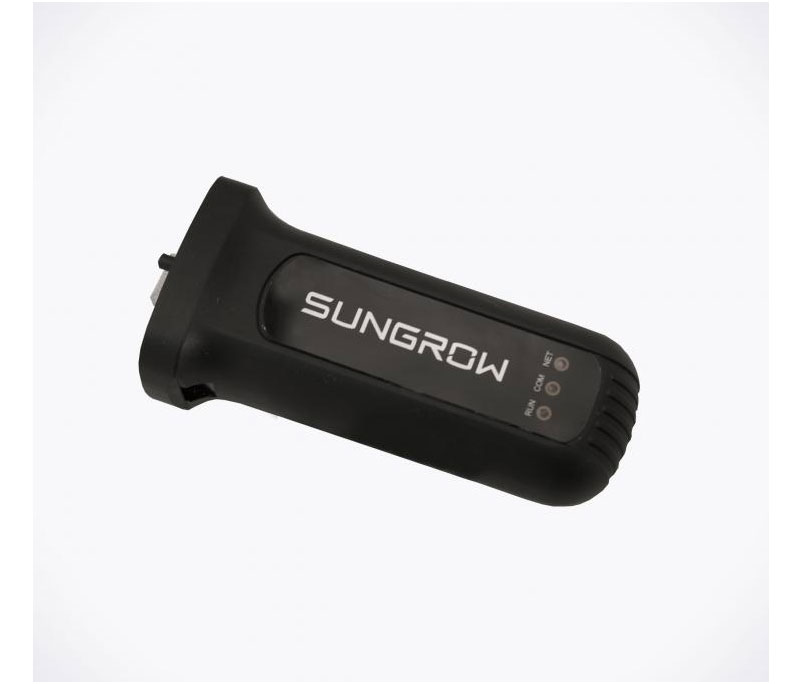

Type designation | WiFi V31 |
BASIC DATA | |
Supported device number | 1 |
| Display | LED x 3 |
| Configuration | APP |
AMBIENT PARAMETERS | |
Operating temperature | -25 °C to 60 °C |
| Allowable relative humidity range (non-condensing) | ≤ 95 % |
| Max. operating altitude | ≤ 4000 m |
| Protection class | IP65 |
MAX. COMMUNICATION RANGE | |
RS485 (to the inverter) | 1 |
| WLAN | 2.4 GHz 802.11 b/g/n |
MECHANICAL PARAMETERS | |
Dimensions (W x H x D) | 48 x 97 x 36 mm |
| Installation | Plug-in type |
POWER SUPPLY | |
Input voltage | 5.0 ± 0.25 Vdc |
| Power consumption | 2 W |
